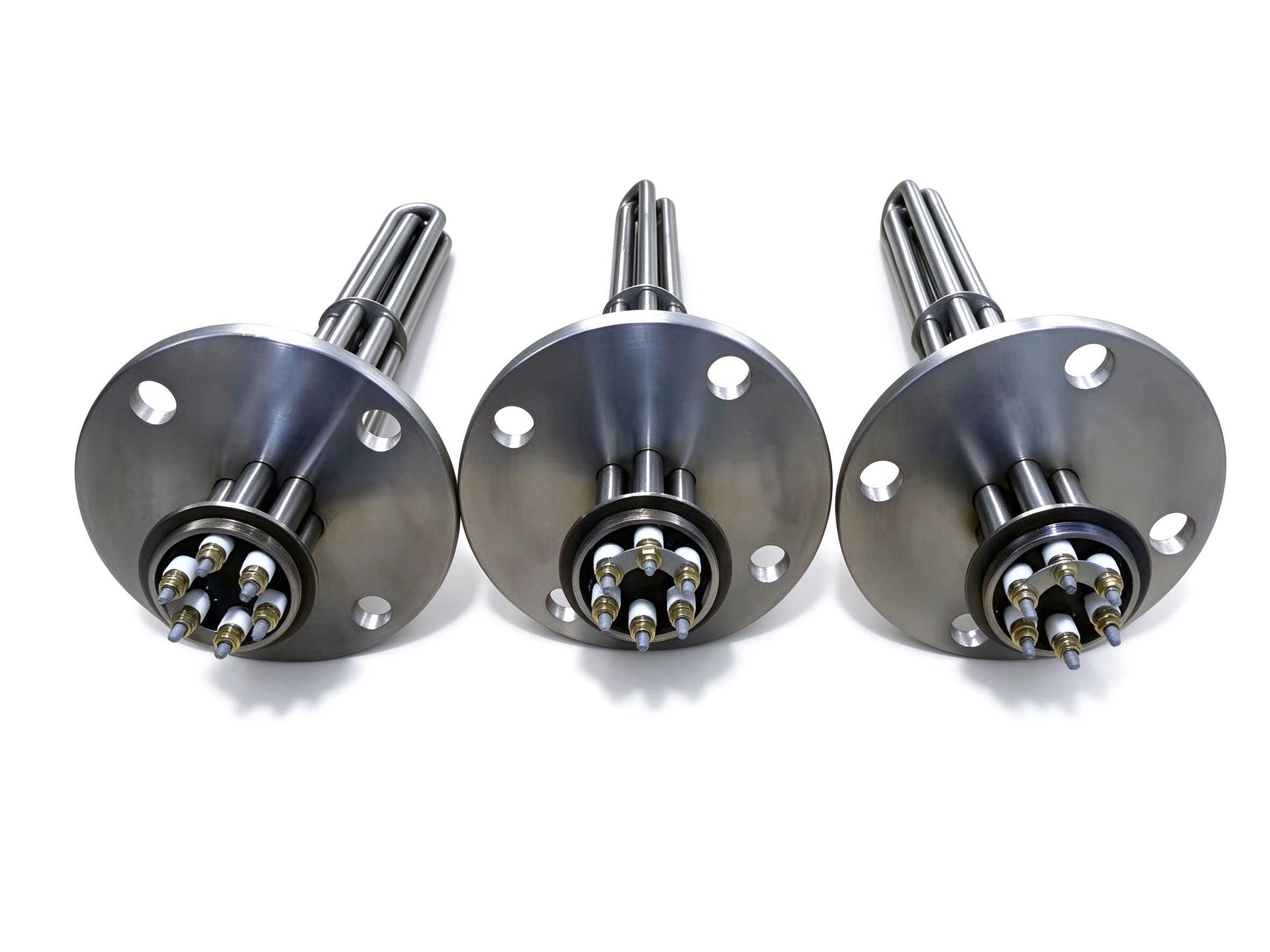

Flange-mounted immersion heater with multiple U-shaped stainless steel tubular elements welded to a circular steel flange, ceramic insulators and terminal studs on the junction side. Directly installed into water tanks, oil tanks and reaction vessels for reliable liquid heating. High efficiency, sealed and easy to service. Voltage, wattage, flange standard (DN / ANSI / JIS) and sheath material fully customizable.
This flange immersion heater is built by welding several U-shaped (or W-shaped) tubular heating elements to a circular steel flange, forming a one-piece immersion heating assembly. The sheath is available in SUS304 / SUS321 / SUS316L stainless steel or Incoloy 800/840 high-temperature alloy. Inside, high-purity MgO insulation packs a Ni-Cr resistance coil; after swaging, the heater delivers excellent heat transfer, high dielectric strength and long service life.
The terminal side uses high-temperature ceramic insulators and metal stud terminals (M6/M8/M10) for clear, easy wiring. A stainless steel terminal box (waterproof or explosion-proof Ex-rated) is optional for outdoor, humid or hazardous-area applications. The flange is drilled to customer standards (GB, ANSI B16.5, DIN, JIS) and pressure ratings (PN6 / PN10 / PN16 etc.); combined with a sealing gasket, it achieves vessel-grade sealing and can be quickly removed for maintenance.
Typical applications include water, thermal oil, heavy diesel, heavy fuel oil, dilute acids/alkalis, as well as low-velocity air/gas heating and tracing: hot-water boilers, solar auxiliary heating, rinse tanks, industrial oil storage tanks, reaction kettles, mold-temperature controllers, die-casting oil heaters, HVAC water loops and large-equipment heat tracing.
Customization: flange size (DN50–DN300 or per drawing), tube diameter (φ8–φ16 mm), heated length and layout, voltage (220 V / 380 V / 440 V), total wattage (3 kW up to 150 kW+), sheath material, terminal box type (standard / waterproof / explosion-proof), and optional PT100 / Type-J thermocouple with control panel. Drawings, fluid type and operating conditions are welcome for quote.
